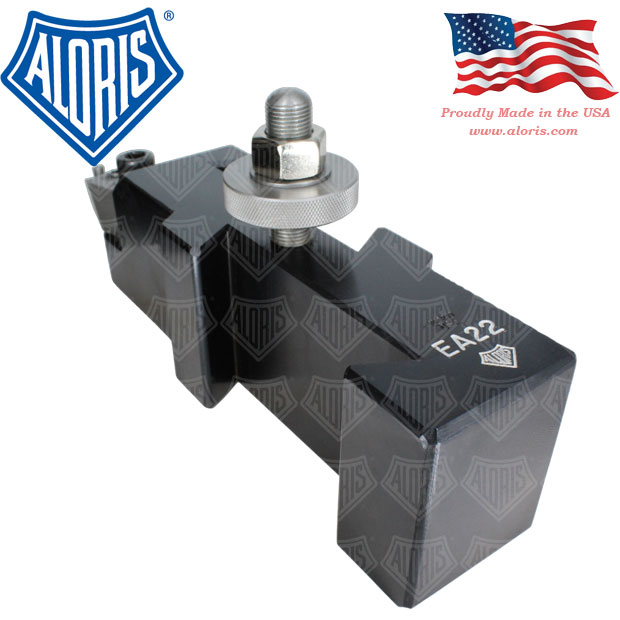

Universal Turning & Boring Holder #22 EA-22

A unique design provides for many angular turning, contouring and chamfering operations. The cartridge has 12 indexing positions at 15° intervals. All holders assure proper cutting edge and clearance angles at all indexing points. Two-way adjustable rake for right or left hand turning with 5° cutting angle – positive stop. Tool steel cartridge adjusts every 15º for right or left hand turning, facing or chamfering. 12 positive lock positions. Exclusive positive lock with 2-way force holding insert down and tight against shoulder. Standard triangular carbide insert has 6 cutting edges.

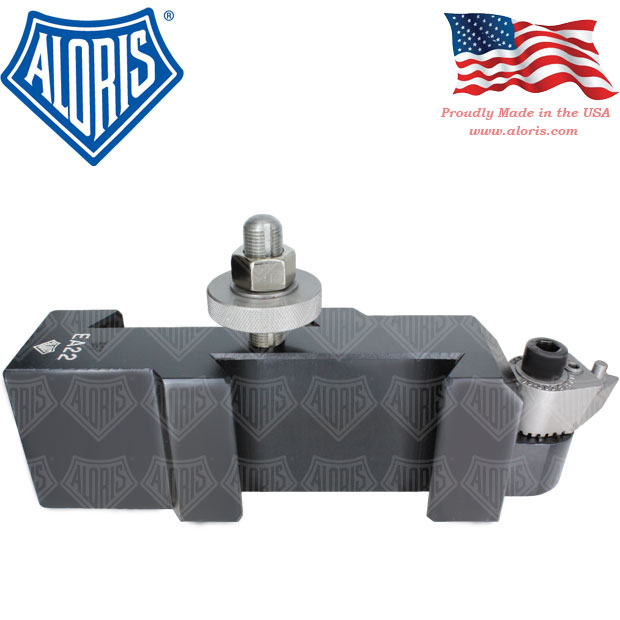

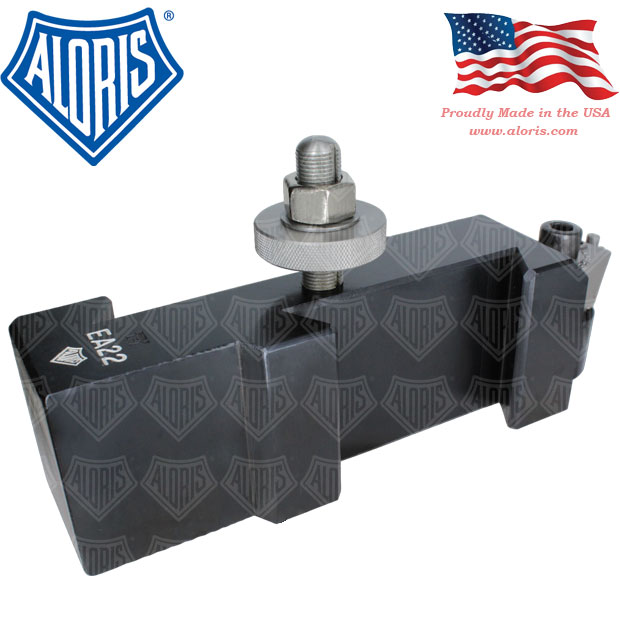

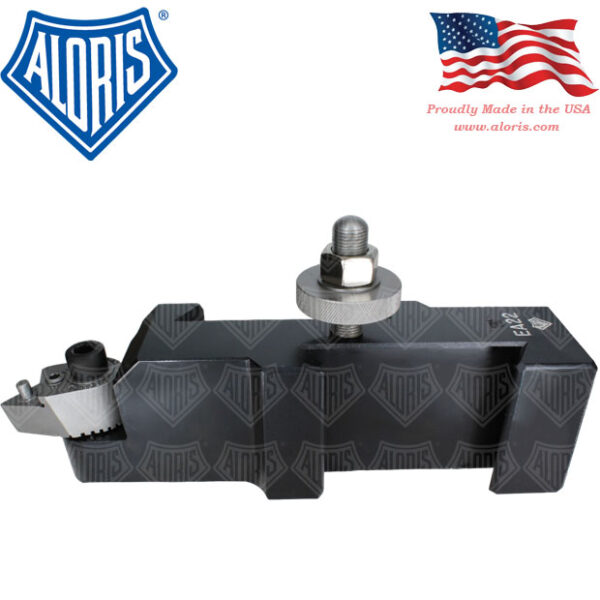

The model #22, with its two-dovetail design, leads to a wide range of applications by permitting front and rear turning, contouring, boring and facing operations.

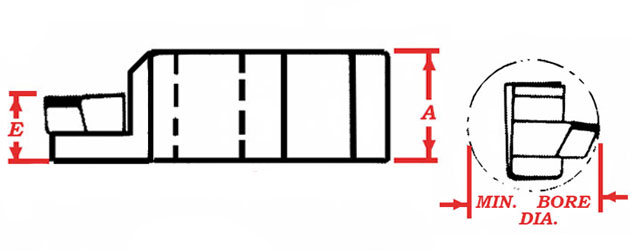

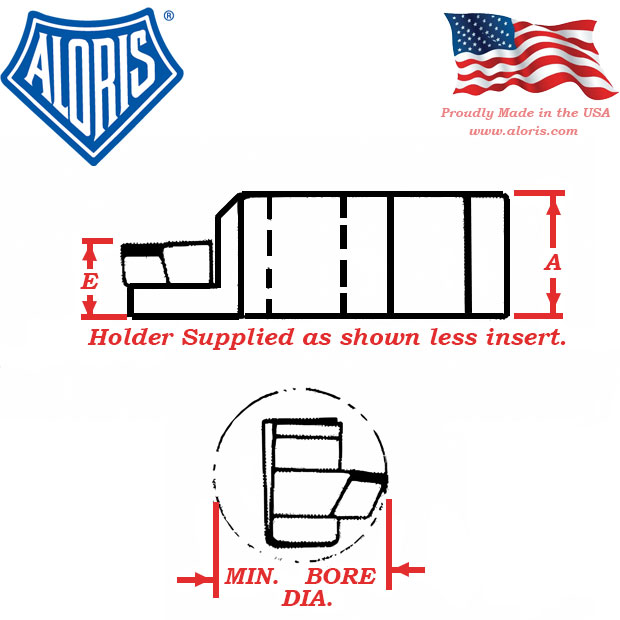

Dimensions (see image) A: 3″; E: 2¹/₈“; Min. Bore Dim.: 5″; Max. Bore Length: 4″

Related Item

*Height Adjustment Assembly EA-HA

*Cartridge CRT-30

*Cradle CC-30

*Lock Screw LS-30

*Hex Locking Pin LP-30
