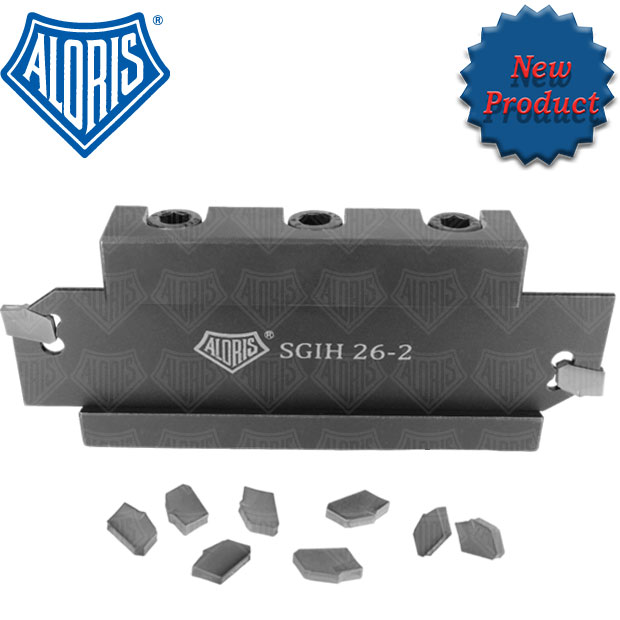

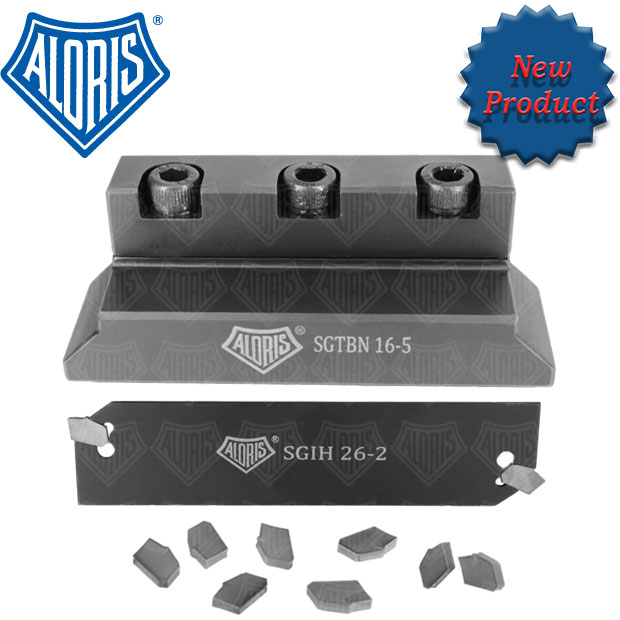

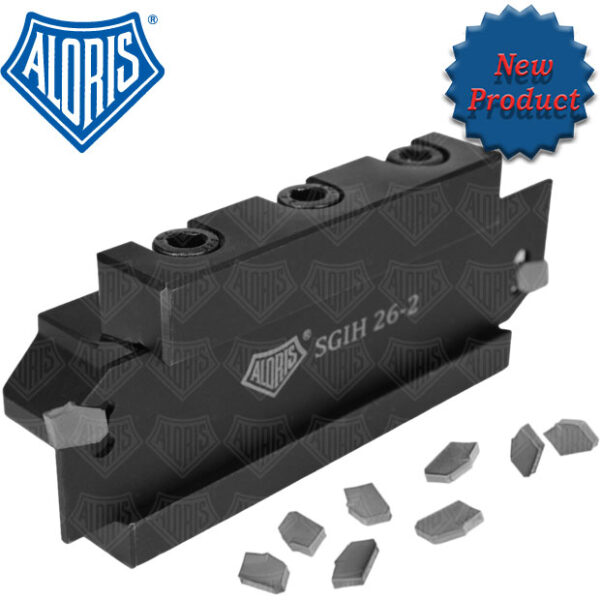

CNC Tool Block SET SGTBN 16-5

Purchasing the SET is a savings of 5% over purchasing them separately.

The CNC Tool Block SET SGTBN 16-5 can be used in both CNC and Manual Lathes, Left or
Right Hand. It accepts the following Wedge Grip Blades and Inserts:

Blades and Inserts are interchangeable with all major Manufacturers. Always adjust the blade to be as stubby as possible to assure efficient cutting without chatter or vibration.

Dimensions

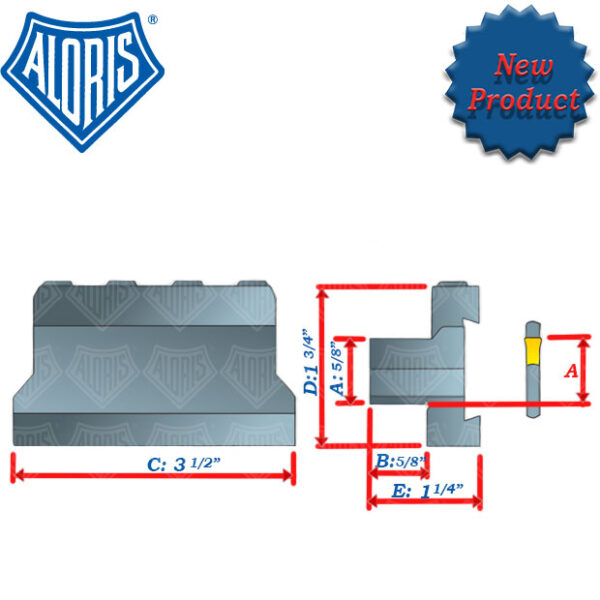

CNC Block Tool  (see image):

A: ⁵/₈“; B: ⁵/₈“; C: 3¹/₂“; D: 1³/₄“; E: 1¹/₄”

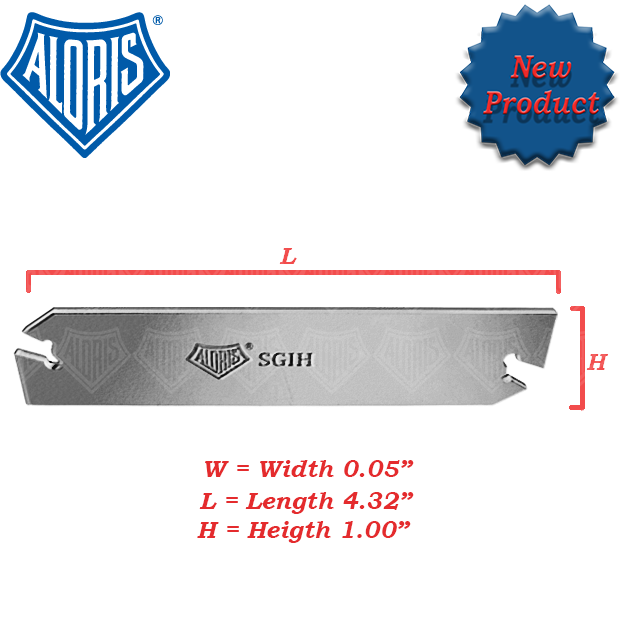

Cut-Off & Grooving Blade SGIH26-2PS(see image):

W:(±0.005″); L: 4.32″; H:1.00″

Extractor Tool Included

GT Style Aloris Wedge-Grip Carbide Cut-Off Insert GTN-2P Grade A6

Cutting Width: 0.087″; Lead Angle: 0º

Available in different size

• CNC Tool Block SET SGTBN 15-2
• CNC Tool Block SET SGTBN 16-2
• CNC Tool Block SET SGTBN 16-5
• CNC Tool Block SET SGTBN 19-5
• CNC Tool Block SET SGTBN 19-6
• CNC Tool Block SET SGTBN 25-6
