Cartridge CRT-30

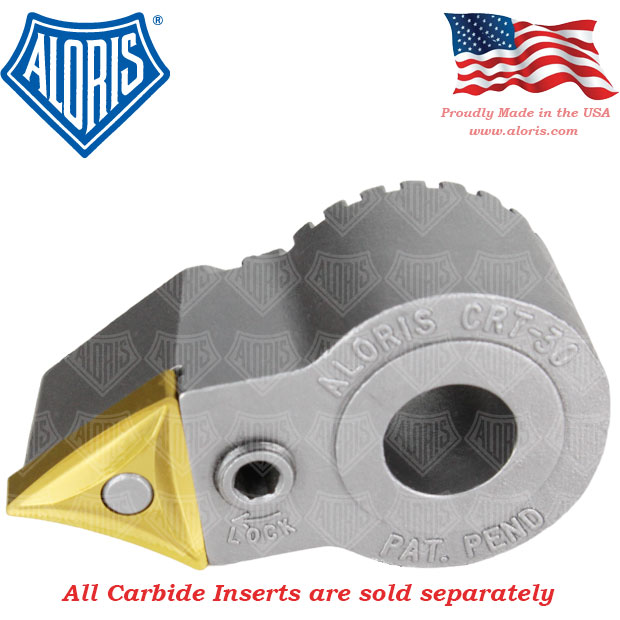

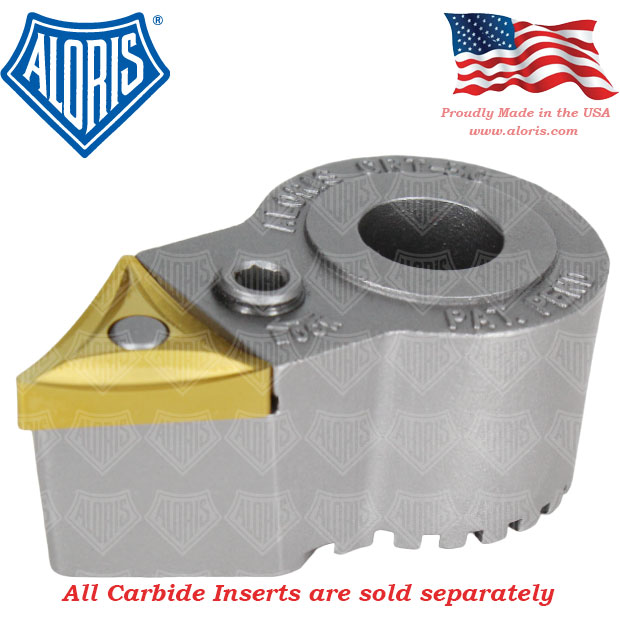

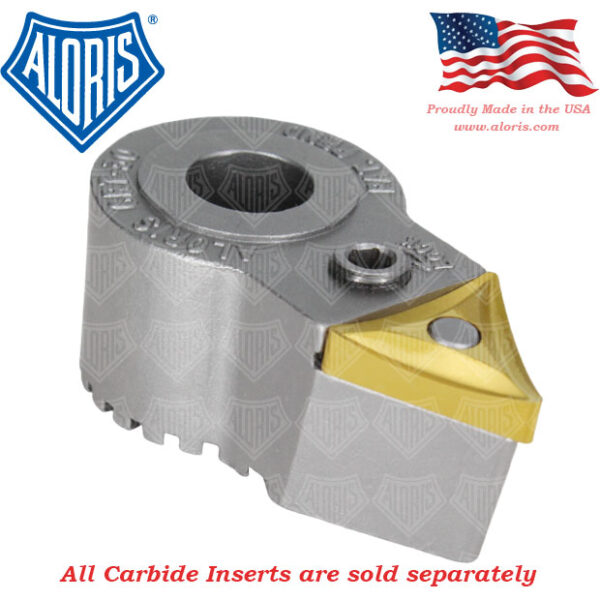

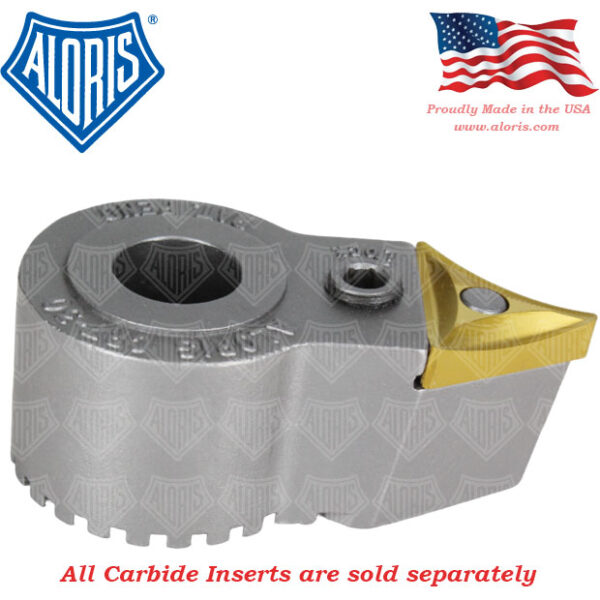

The Aloris Cartridge CRT-30 is a high-performance, tool steel cartridge designed for use in a wide range of Aloris tooling systems, including the Aloris Adjustable-Shank Tool Holder, Universal Tool Holders, and the Aloris CBB6-30 Cartridge-Head Boring Bar.

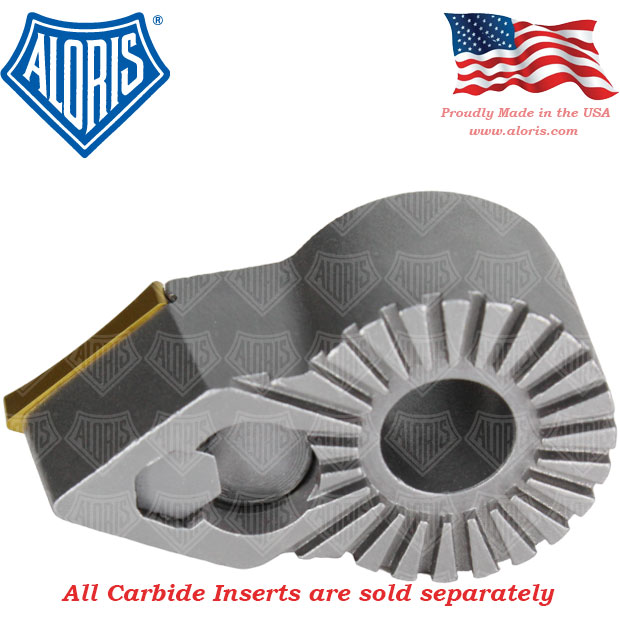

Engineered for versatility and precision, the CRT-30 features a 12-position positive lock indexing system, allowing accurate adjustment every 15° for right-hand or left-hand turning, facing, or chamfering. Its exclusive positive locking mechanism applies 2-way clamping force—securing the insert firmly down and tight against the shoulder, minimizing movement under heavy cutting loads.

The CRT-30 accommodates standard triangular carbide inserts with six cutting edges, maximizing tool life and cutting efficiency. Built from hardened tool steel, this cartridge provides exceptional rigidity and repeatability. It can also be easily adapted to other boring bars or specialty tools, tailored to meet custom specifications in demanding CNC and manual machining environments.

• Applications: Compatible with CBB6-30 Boring Bar, Adjustable-Shank, and Universal Tool Holders

• Insert Compatibility: Standard triangular carbide insert with 6 edges

• Indexing: 12 positive lock positions at 15° intervals

• Locking Mechanism: Dual-force locking for secure, precise insert placement

• Versatility: Easily adaptable to custom bars and tools

• Material: Hardened tool steel for strength and durability

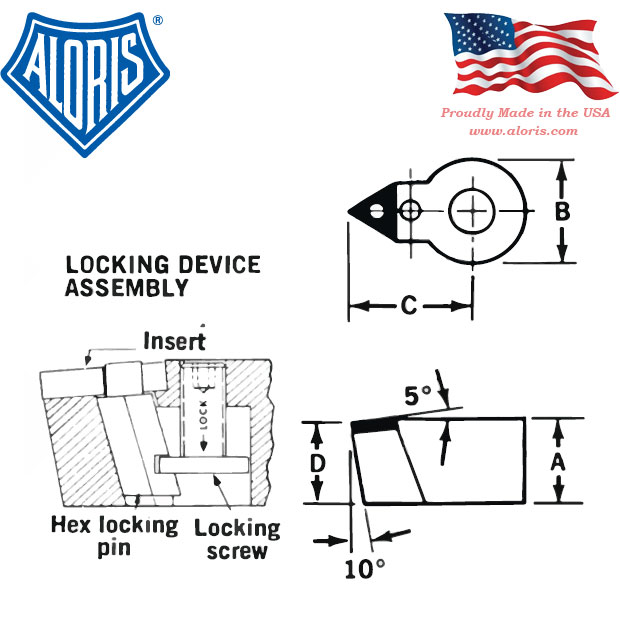

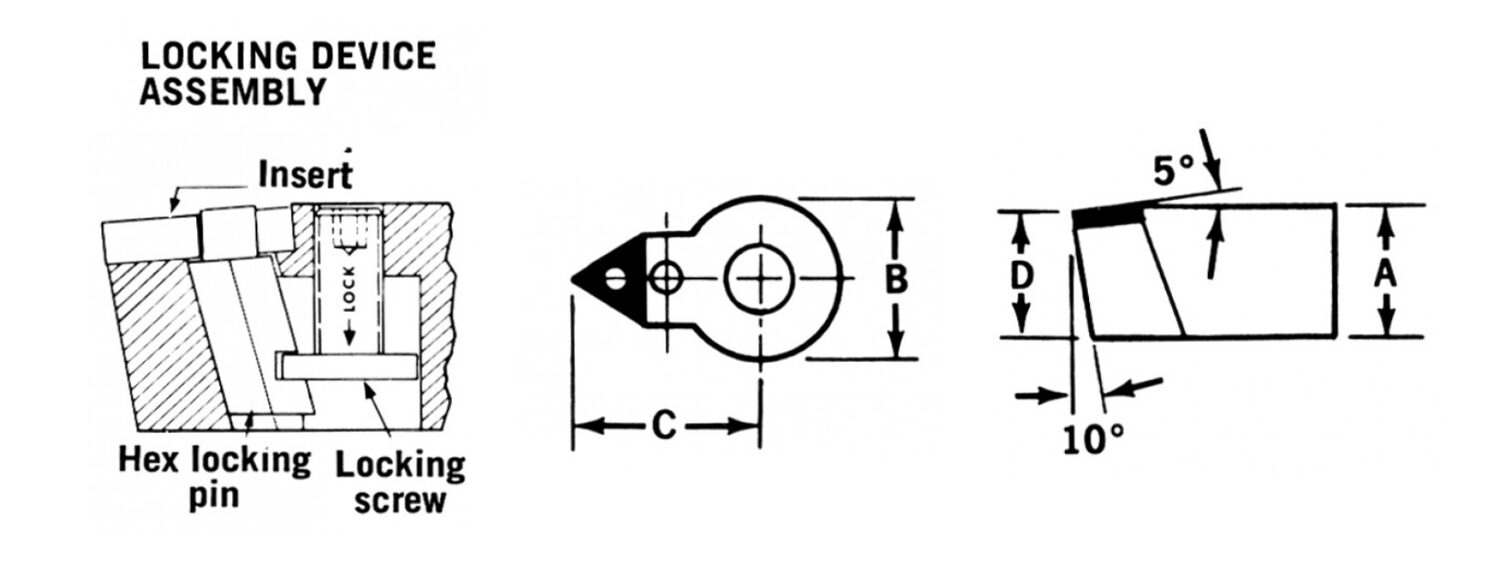

Dimensions (see image) A: ⁷/₈“; B: 1¹/₄“; C: 1¹¹/₁₆“; D: ²⁵/₃₂“

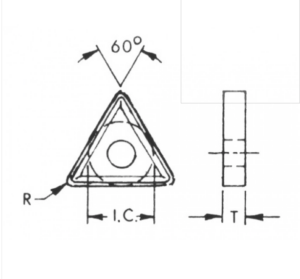

Insert Size (see image) IC: ¹/₂“; Thick: ³/₁₆”  – ¹/₄“

Applications:

✅Aloris Adjustable-Shank Tool Holder AT-40 .
✅EA Universal Tool Holders #22 – #30.
✅DA Universal Tool Holders #22 – #30.
✅CA Universal Tool Holders #22 – #30.
✅Aloris CBB6-30 Cartridge-Head Boring Bar.

Cartridges can be supplied separately or combined with cartridge cradle. Choose from carbide style TNMS, TNMP, or TNMG.

Replacement Parts:

✅Hex Locking Pin LP-30
✅Lock Screw LS-30
