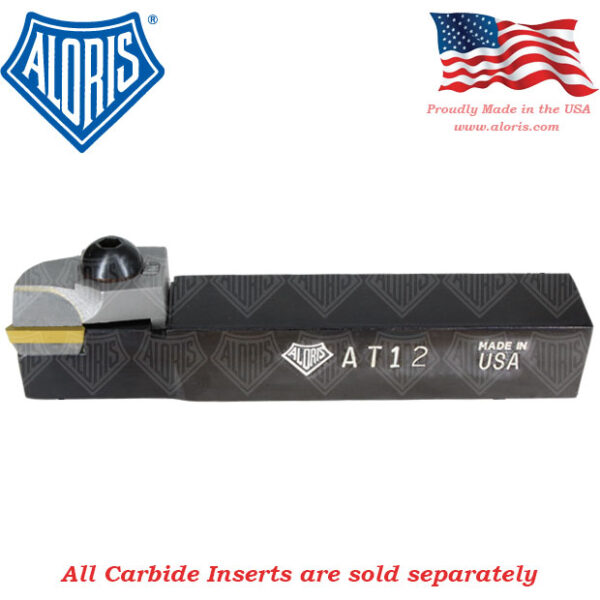

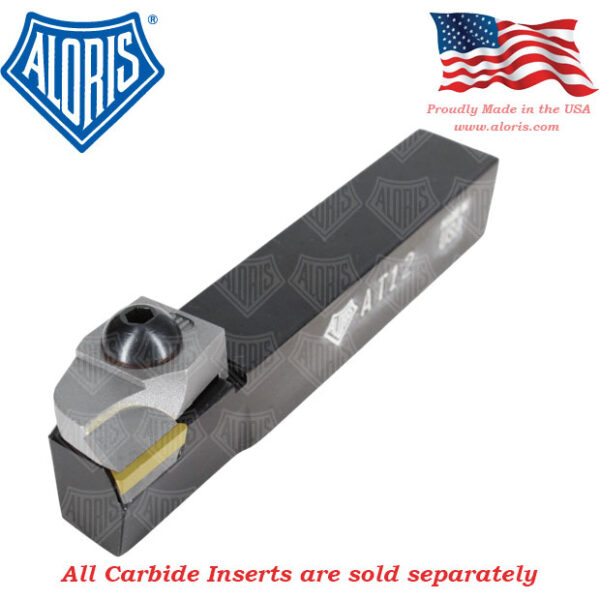

Aloris Turning Holder Negative AT12N-4

Adjustable Carbide Chip-breaker AT12N-4 provides excellent chip control. Holders supplied as shown less carbide inserts. Negative rake. Also available with positive rake. Designed to accept Standard Triangular Inserts.

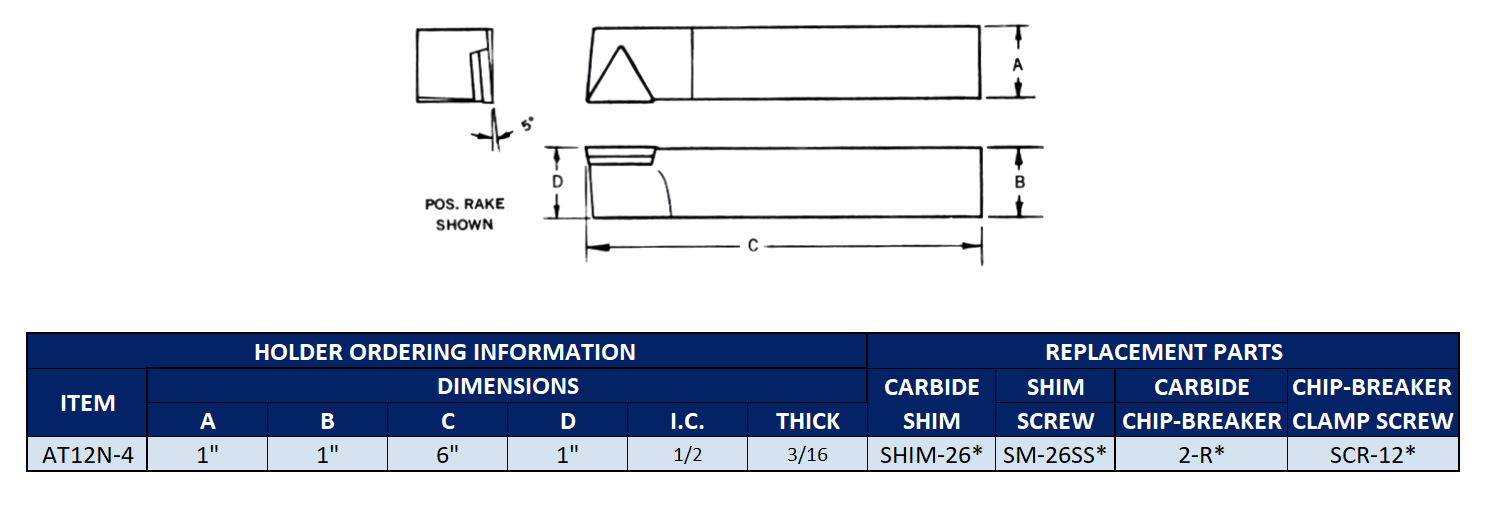

Dimensions (see image) A: 1″; B: 1″; C: 6″; D: 1″

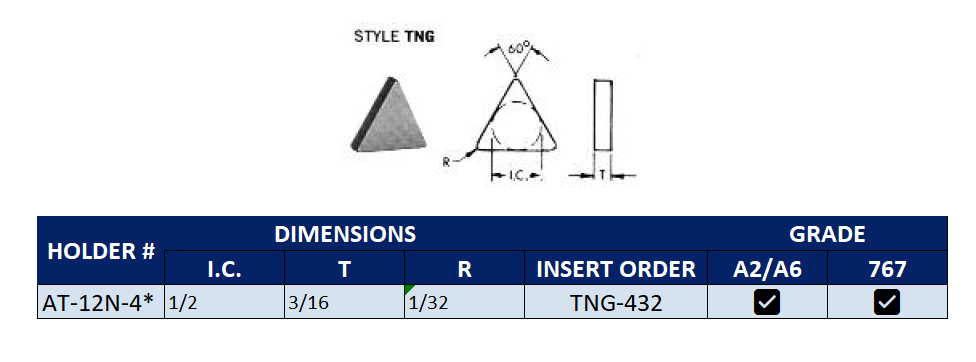

CARBIDE INSERTS

Insert size: I.C. ¹/₂“; thickness: ³/₁₆”

Replacement Parts:

✅Carbide Shim: SM-26*
✅Shim Screw: SM-26SS*
✅Carbide Chip-breaker: 2-R*
✅Chip-breaker Clamp Screw: SCR-12*
